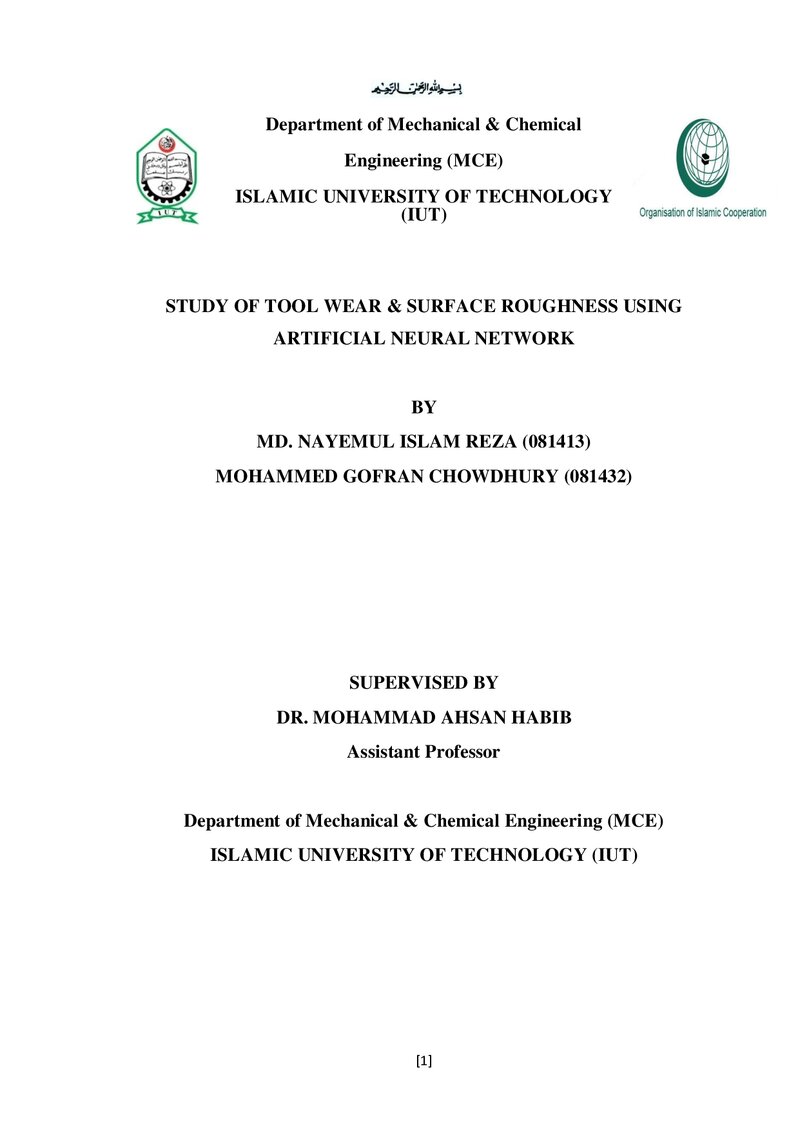

Study of Tool Wear & Surface Roughness Using Artificial Neural Network
Date
2012-11-15
Journal Title
Journal ISSN
Volume Title
Publisher
Department of Mechanical and Production Engineering (MPE),Islamic University of Technology(IUT), Board Bazar, Gazipur, Bangladesh
Abstract
In any machining operation, tools wear and surface roughness results inaccuracy and inefficiency. So it is always desirable to ensure minimum level of tool wear and surface roughness. Both of them depend on some parameters like feed, spindle speed, depth of cut and operation time. Optimization of these parameters ensures existence of tool wear and surface roughness under the tolerance limit. In this project, our aim is to devise a way of predicting tool wear and surface roughness for a given set of parameters. To do that, we collected experimental results of tool wear and surface roughness for thirty sets of parameters which were selected by Central Composite Rotatable Design (CCRD). Both tool flank and nose wear and surface roughness were measured by taking microscopic images of tool edge and job piece surface after each machining operation and then by using Image Processing Tool of MATLAB. The obtained results were then used for developing Artificial Neural Network (ANN) which was then used for the prediction of tool wear and surface roughness for a given set of parameters. The prediction and actual result were then compared and it was seen that both results coincide with each other
Description
Supervised by
Dr. Mohammad Ahsan Habib,
Assistant Professor,
Department Of Mechanical and Chemical Engineering (MCE)
Islamic University Of Technology (IUT)
Board Bazar, Gazipur-1704, Bangladesh.
Keywords
Citation
1. Analysis of Surface Roughness Generation in TurningOperation and its Applications. T. Sata,M. Li,H. Hiraoka. 1, 1985, CIRP Annals - Manufacturing Technology, Vol. 34, pp. 473-476. 2. 2D FEM estimate of tool wear in turningoperation. L.-J. Xie,J. Schmidt,C. Schmidt,F. Biesinge. 10, May 2005, Wear, Vol. 258, pp. 1479-1490. 3. A note on the determination of optimal cutting conditions for surface finish obtained in turning using design of experiments. Davim, J.Paulo. 2-3, October 2001, Journal of Materials Processing Technology, Vol. 116, pp. 305–308. 4. An ANN approach for predicting subsurface residual stresses and the desired cutting conditions during hard turning. D. Umbrello,G. Ambrogio,L. Filice,R. Shivpuri. 1-3, July 2007, Journal of Materials Processing Technology, Vol. 189, pp. 143-152. 5. Correlating tool wear, tool life, surface roughness and tool vibration in finish turning with coated carbide tools. M.E.R. Bonifacio,A.E. Diniz. 1-2, April 1994, Wear, Vol. 173, pp. 137–144. 6. Multi Objective Optimization of Cutting Parameters in Turning Operation to Reduce Surface Roughness and Cutting Forces. choudhury, Suryansh. May 22, 2012 . 7. A study of tool life in hot machining using artificialneuralnetworks and regression analysis method. Nihat Tosun, Latif Özler. Issues 1–2, June 2002, Journal of Materials Processing Technology, Vol. Volume 124, pp. 99–104. 8. Electric load forecasting using an artificial neural network. Park, D.C. 2, May 1991, Power Systems,IEEE transactions on, Vol. 6 , pp. 442 - 449. 9. A Step towards Intelligent Manufacturing: Modelling and Monitoring of Manufacturing Processes through ArtificialNeuralNetworks. Laszlo Monostoria,Janos Prohaszka. 1, 1993, CIRP Annals - Manufacturing Technology, Vol. 42, pp. 485-488. 10. A Neural Network Based Artificial Vision System for Licence Plate Recognition. Draghici, Sorin. 1, february 1997, International Journal of Neural Systems, Vol. 8. 11. Use of an Artificial Neural Network for Data Analysis in Clinical Decision-Making: The Diagnosis of Acute Coronary Occlusion. Baxt, William G. 1990, Neural Computation, Vol. 2, pp. 480-489. 12. The integrated methodology of rough set theory and artificial neuralnetwork for business failure prediction. B.S. Ahn,S.S. Cho,C.Y. Kim. 2, february 2000, Expert Systems with Applications, Vol. 18, pp. 65-74. [43] 13. A multi-sensor fusion model based on artificial neural network to predict tool wear during hard turning. P Sam Paul1,AS Varadarajan. November 9, 2011. 14. Estimation and Optimization Cutting Conditions of Surface Roughness in Hard Turning Using Taguchi Approach and Artificial Neural Network. Asaad A. Abdullah, Usama J. Naeem, Cai Hua Xiong. February 2012, Advanced Materials Research , Vols. 463-464, pp. 662-668. 15. Prediction of surface roughness and dimensional deviation by measuring cutting forces and vibrations in turning process. K.A Risbood,U.S Dixit,A.D Sahasrabudhe. 1-3, January 2003, Journal of Materials Processing Technology, Vol. 132, pp. 203-214. 16. Positional, geometrical, and thermal errors compensation by tool path modification using three methods of regression, neural networks, and fuzzy logic. Sina Eskandari, Behrooz Arezoo and Amir Abdullah. 2012, The International Journal of Advanced Manufacturing Technology. 17. Effect of Tool Wear on Roughness in Hard Turning. M.L. Penalva,M. Arizmendi,F. Diaz,J. Fernández,Z. Katz. 1, 2002, CIRP Annals - Manufacturing Technology, Vol. 51, pp. 57-60.
