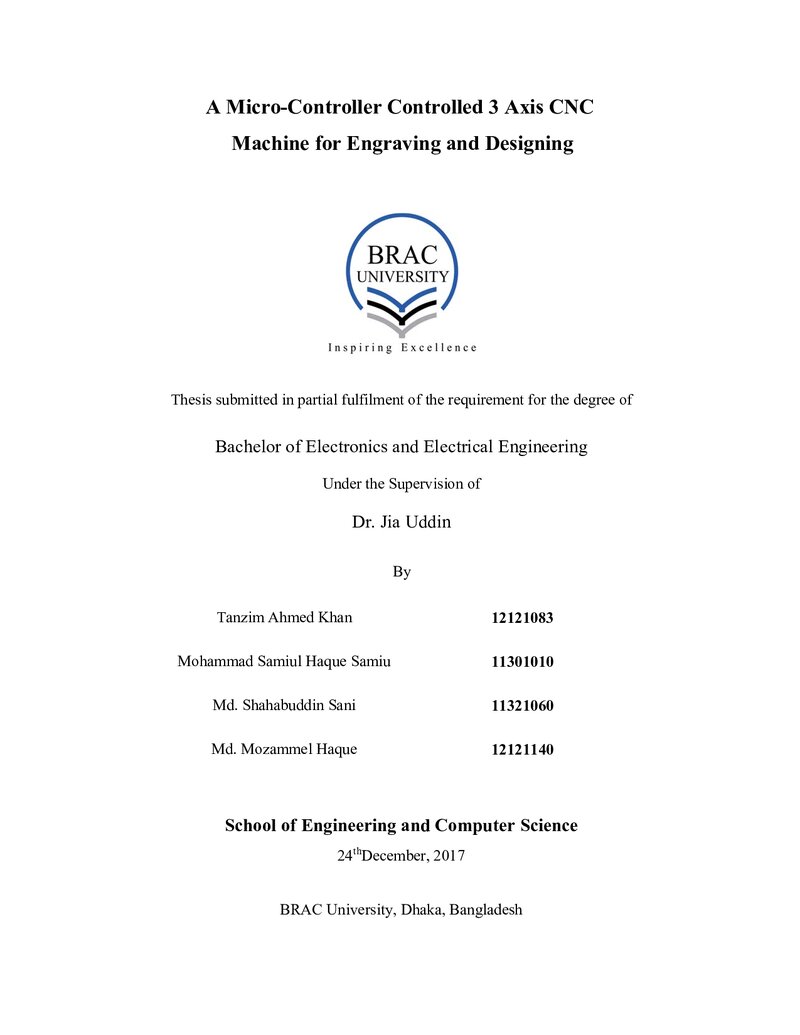

A micro-controller controlled 3 Axis CNC Machine for engraving and designing

Abstract

The expansion in the fast development of innovation altogether expanded the use and usage of CNC machines yet is costly. This paper examines the outline viewpoints and machinability investigation of low cost CNC machine cum engraver which is fit for 3-axis synchronous operation with less complexity. The additional Bluetooth highlight makes the machine more easy to use to work utilizing a cell phone separated from USB.The lower cost is accomplished by interfacing standard PC with micro controller based CNC framework in an Arduino based embedded system. After the completion of machining, experimental trials to define machining parameters were held. The purpose of the Self-Guided CNC project is to construct a functional CNC type machine capable of tracking lines on and object to guide the armature in cutting the piece correctly. The device would be capable of functioning independent of off-board computers for both operation and determining cutting paths. The goal is not only high-precision cuts but also design and plot.
