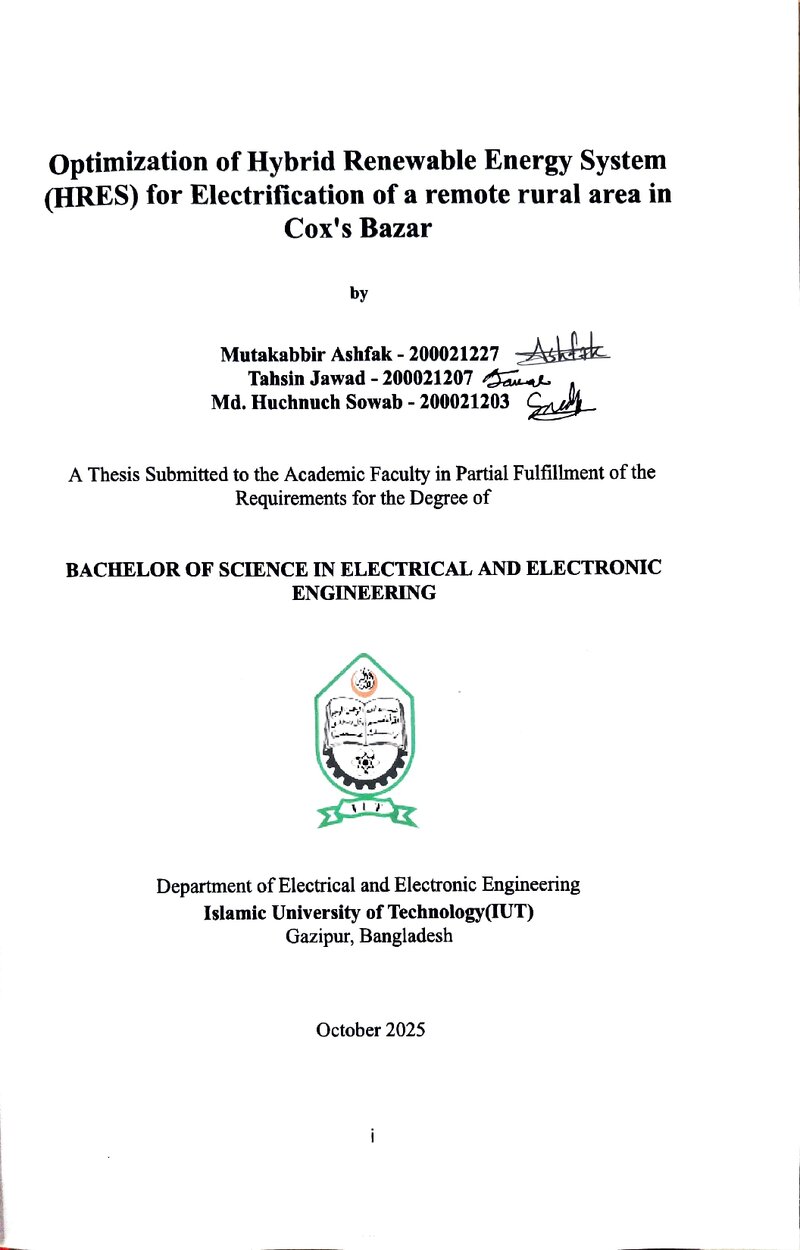

Optimization of Hybrid Renewable Energy System HRES) for Electrification of a remote rural area in Cox's Bazar
Date
2025-10-25
Journal Title
Journal ISSN
Volume Title
Publisher
Department of Electrical and Electronic Engineering (EEE), Islamic University of Technology(IUT), Board Bazar, Gazipur-1704, Bangladesh
Abstract
This thesis investigates a cost-reliable Hybrid Renewable Energy System (HRES) tailored for
rural demand, emphasizing uncertainty in resources and load. We consider photovoltaic
generation, a biomass unit, and battery storage, and model variability via probabilistic
strategies—Monte Carlo Simulation (MCS), Point Estimation Method (PEM), and
Scenario-Based Analysis (SBA). Hourly solar irradiance, ambient temperature–dependent PV
output, biomass fuel availability, and community load are represented as random variables;
sampling/aggregation produces scenario sets fed to an optimization framework. Two hybrid
optimizers are implemented: a time-focused PSO–GA–GWO and an accuracy-focused
PSO–GWO–WOA. The objective function minimizes total system cost under a loss of power
supply probability (LPSP) constraint, with lifecycle economics over a 20-year horizon. Results
show that the proposed HRES meets the target reliability of LPSP ≤ 3% while reducing
levelized cost by a considerable margin when compared with a deterministic baseline. Sensitivity
analyses over a particular range solar variance and load variance indicate robust performance,
with optimal capacities of PV: [Npv] kWp, biomass: [Pbio] kW, and battery: [Ebat] kWh. The
findings demonstrate that explicitly modeling uncertainty and optimizing against expected
outcomes yields designs that are both economically competitive and operationally reliable,
providing a defensible pathway for village-scale electrification.
Description
Supervised by
Mr. Quazi Nafees-ul-Islam,
Assistant Professor,
Department of Electrical and Electronic Engineering (EEE)
Islamic University of Technology (IUT)
Board Bazar, Gazipur, Bangladesh
This thesis is submitted in partial fulfillment of the requirement for the degree of Bachelor of Science in Electrical and Electronic Engineering, 2025
Keywords
HRES, uncertainty modeling, LPSP, MCS, PEM, SBA, PSO, GWO, WOA, rural electrification
Citation
[1] S. M. T. Rahman, A. M. Hashan, M. M. R. Sharon, S. Saha et al.,“Carbon footprint analysis of fossil power plants in Bangladesh: measuring the impact of CO₂ and greenhouse gas emissions,”Carbon Neutrality, vol. 2, art. 47, May 2024, doi:10.1007/s44274-024-00081-x [2]A. Raihan,S. Farhana, D.A. Muhtasim, M.A. Hasan, A. Paul and O.Faruk “The nexus between carbon emission, energy use, and health expenditure: empirical evidence from Bangladesh,” Environ. Sci. Pollut. Res., vol. 29, pp. xxxx–xxxx, 2022, doi:10.1007/s44246-022-00030-4. [3]K. G. Moazzem and A. Khandker,“Imported fossil fuel–dependent energy market of Bangladesh: How global energy crisis triggered domestic inflation?,” CPD Policy Brief 39, Centre for Policy Dialogue, Dhaka, Bangladesh, 2022. [4] World Wildlife Fund, "Importance of Renewable Energy in the Fight against Climate Change." Available: https://www.worldwildlife.org/magazine/articles/importance-of-renewable-energy-in-the-fight-ag ainst-climate-change--3 [5] “United Nations Development Programme,” UNDP. Accessed: Jan. 22, 2024. [Online]. Available: https://www.undp.org/sustainable-development-goals. [6] “SDG Tracker.” Accessed: Jan. 22, 2024. [Online]. Available: https://sdg.gov. bd/page/indicator-wise/5/442/3/0#1[7] World Bank, “Lighting up rural communities in Bangladesh: The Second Rural Electrification and Renewable Energy Development Project,” World Bank Results, Mar. 2021. [Online]. Available: https://www.worldbank.org/en/results/2021/03/13/lighting-up-rural-communities-in-bangladesh-t he-second-rural-electrification-and-renewable-energy-development-project[8] The Business Standard, “Lighting rural growth: The promise of renewable energy in Bangladesh,” TBS News, 2024. [Online]. Available: https://www.tbsnews.net/thoughts/lighting-rural-growth-promise-renewable-energy-bangladesh 1234311 [9] World Bank, “Bangladesh: Solar home systems provide clean energy for 20 million people,” Press Release, Apr. 2021. [Online]. Available: https://www.worldbank.org/en/news/press-release/2021/04/07/bangladesh-solar-home-systems-p rovide-clean-energy-for-20-million-people [10] U.S. Department of Commerce, “Bangladesh – Renewable Energy Sector Opportunities,” International Trade Administration, 2023. [Online]. Available: https://www.trade.gov/market-intelligence/bangladesh-renewable-energy-sector-opportunities Features, [11] World Bank, “Brightening horizons, cleaner air for Bangladesh’s rural communities,” World Bank Jun. 2018. [Online]. Available: https://www.worldbank.org/en/news/feature/2018/06/05/brightening-horizons-cleaner-air-for-ban gladeshs-rural-communities 83 [12] Md. Raju Ahmed1 , Subir Ranjan Hazra1*, Md. Mostafizur Rahman1** and Rowsan Jahan Bhuiyan1***. Solar-Biomass Hybrid System; Proposal for Rural Electrification in Bangladesh. [13] Nahian AJ. Techno-economic analysis of a hybrid mini-grid in rural areas: A case study of Bangladesh [Online]. Available: Journal of Energy Research and Reviews, Accessed 2024. https://www.academia.edu/51632803/Techno_Economic_Analysi s_of_a_Hybrid_Mini_grid_in_Rural_Areas_A_Case_Study_of_Bangladesh. [14] Rashid F, Hoque ME, Aziz M, Sakib TN, Islam MT, Robin RM. Investigation of optimal hybrid energy systems using available energy sources in a rural area of bangladesh. Energies 2021;vol. 14(18). https://doi.org/10.3390/en14185794. Art. no. 18. [15] Md. Feroz Ali 1,*,Md. Alamgir Hossain 2,Mir Md. Julhash 1,Md Ashikuzzaman 1,Md Shafiul Alam 3 and Md. Rafiqul Islam Sheikh 4. A Techno-Economic Analysis of a Hybrid Microgrid System in a Residential Area of Bangladesh: Optimizing Renewable Energy. Available: https://www.mdpi.com/2071-1050/16/18/8051 [16] M. R. Islam, M. R. Islam, and T. Rahman, “A techno-economic feasibility analysis of wind–solar hybrid system for rural electrification in Bangladesh,” Energy, vol. 36, no. 2, pp. 971–978, Feb. 2011. [17] “Energies | Free Full-Text | Techno-Economic Performance and Sensitivity Analysis of an Off-Grid Renewable Energy-Based Hybrid System: A Case Study of Kuakata, Bangladesh.” Accessed: Jul. 12, 2024. [Online]. Available: https://www.mdpi. com/1996-1073/17/6/1476. [18] Keyvandarian A, Saif A. Robust optimal sizing of a stand-alone hybrid renewable energy system using dynamic uncertainty sets. Energy Syst Feb. 2024;15(1): 297–323. https://doi.org/10.1007/s12667-022-00545-0. [19] M. A. H. Mondal and M. Denich, “Assessment of renewable energy resources potential for electricity generation in Bangladesh,” Renewable and Sustainable Energy Reviews, vol. 14, no. 8, pp. 2401–2413, Oct. 2010 [20]M. Dorigo, V. Maniezzo, and A. Colorni,“Ant System: An Autocatalytic Optimizing Process (Technical Report No. 91‑016, Revised),” Dipartimento di Elettronica e Informazione, Politecnico di Milano, Italy, Nov. 1991. [21]P. Suhane, S. Rangnekar, A. Mittal, and A. Khare,“Sizing and performance analysis of standalone wind‑photovoltaic based hybrid energy system using ant colony optimisation,”IET Renewable Power Generation, vol. 2016,doi: 10.1049/iet‑rpg.2015.0394 10, no. 8, pp. 1172–1180, Aug. [22] S. Mirjalili, S. M. Mirjalili, and A. Lewis, "Grey wolf optimizer," Advances in engineering software, vol. 69, pp. 46-61, 2014. [23] P. Anand, M. Rizwan, and S. K. Bath, "Sizing of renewable energy based hybrid system for rural electrification using grey wolf optimisation approach," IET Energy Systems Integration, 2019. [24] S. Mirjalili and A. Lewis,“The whale optimization algorithm,”Advances in Engineering Software, vol. 95, pp. 51–67, Mar. 2016,doi: 10.1016/j.advengsoft.2016.01.008. [25] A. S. Menesy, S. Almomin, H. M. Sultan, I. O. Habiballah, M. M. Gulzar, M. Alqahtani, and M. Khalid,“Techno‑economic optimization framework of renewable hybrid 84 photovoltaic/wind turbine/fuel cell energy system using artificial rabbits algorithm,”IET Renewable Power Generation, vol. 18, no. 15, pp. 2907–2924, Nov. 2024,doi: 10.1049/rpg2.12938. [26]A. B. Alyu, A.O. Salau, B. Khan and J.N. Eneh, “Hybrid GWO–PSO based optimal placement and sizing of multiple PV–DG units for power loss reduction and voltage profile improvement,”Scientific Reports, vol. 13, Art. no. 5450, Apr. 2023, doi: 10.1038/s41598-023-32596-5. [27] M. Bilal, P. N. Bokoro, and G. Sharma, “Hybrid optimization for sustainable design and sizing of standalone microgrids integrating renewable energy, diesel generators, and battery storage with environmental considerations,” Results in Engineering, vol. 25, Art. no. 103764, Mar. 2025, doi: 10.1016/j.rineng.2024.103764. nature.com+7 [28] S. L. Edathil and S. P. Singh,“ACO and CS‑based hybrid optimisation method for optimum sizing of the SHES,”IET Renewable Power Generation, vol. 13, no. 10, pp. 1789–1801, Oct. 2019,doi: 10.1049/iet-rpg.2019.0077 [29] “Eidgaon Upazila,” Wikipedia, last updated 2025. [30] Maptons, “Eidgaon on the map of Bangladesh—exact geographical coordinates,” accessed Sep. 29, 2025. [31] “Cox’s Bazar,” Wikipedia, accessed Sep. 29, 2025. [32] LGED (GIS Unit), “COX’S BAZAR SADAR—Road and settlement map,” PDF map sheet, 2016. [33] World Bank, Present and Future of Cox’s Bazar Energy & Electricity Service: Issues, Challenges and Opportunities for becoming Green and Resilient Energy, Dec. 2022. [34] pvgis.com - PVGIS 5.3 SOLAR PANEL CALCULATOR [35] PGCB Website. https://erp.powergrid.gov.bd/w/report/eyJpdiI6IldsU2ZQTGkvbkRnQU9FMjZ5UHhmeGc9PSIs InZhbHVlIjoiQzhONVl5ZGxRY3E3T3ZVNCtLZGt1Zz09IiwibWFjIjoiN2JiNTI5MzNhOWIxZ DVjY2NkMmFlZWU4ZDU1N2I4OWZlYjNlZWM1ZGU4NzRiNWU4ZjQ3ZDc1ODRlMTk3 MDc0YyIsInRhZyI6IiJ9/show_report?page=22 [36] Bala B, Siddique SA. Optimal design of a PV-diesel hybrid system for electrification of an isolated island—Sandwip in Bangladesh using genetic algorithm. Energy Sustain Dev 2009;13(3):137–42. https://doi.org/10.1016/j.esd.2009.07.002. [37] Akter H, Howlader HOR, Nakadomari A, Islam MR, Saber AY, Senjyu T. A short assessment of renewable energy for optimal sizing of 100% renewable energy based microgrids in remote islands of developing countries: A case study in bangladesh. Energies 2022;vol. 15(3). https://doi.org/10.3390/en15031084. Art. no. 3. [38] SREDA/UNDP (NACOM), A Comprehensive Assessment of the Availability and Use of Biomass Fuels for Various End-uses (with Special Attention to Power Generation), “Component 3: Assessment of supply … for 64 districts,” Dhaka, 2019–2021. Available via SREDA portal. sreda.portal.gov.bd+2SCIRP+2 85 [39] SREDA — National Database of Renewable Energy (NDRE), “Biomass/Biogas projects by district and upazila,” accessed Sep. 2025 [40] F. Rahman, “Prospects and challenges of wind energy in Bangladesh,” Renewable Energy, vol. 9, no. 1, pp. 806–809, Jan. 1996. [41] Soroudi A, Aien M, Ehsan M. A probabilistic modeling of photo voltaic modules and wind power generation impact on distribution networks. IEEE Syst J 2012;6 (2):254–9. https://doi.org/10.1109/JSYST.2011.2162994. [42] Saber AY, Venayagamoorthy GK. Resource scheduling under uncertainty in a smart grid with renewables and plug-in vehicles. IEEE Syst J 2012;6(1):103–9. https:// doi.org/10.1109/JSYST.2011.2163012. [43] Reddy SS. Optimal scheduling of thermal-wind-solar power system with storage. Renew Energy 2017;101:1357–68. https://doi.org/10.1016/j.renene.2016.10.022. [44] BYD, “NLBK-36 (565–600 W) Datasheet,” 2024. [Online]. Available: Solar BYD Download Center. Accessed: Oct. 2025. [45] Hossain MA, Ahmed A, Tito SR, Ahshan R, Sakib TH, Nengroo SH. Multi-objective hybrid optimization for optimal sizing of a hybrid renewable power system for home applications. Energies 2023;vol. 16(1). https://doi.org/10.3390/ en16010096. Art. no. 1. [46] “Hydrogen Production: Biomass Gasification,” Energy.gov. Accessed: Sep. 27, 2023. [Online]. Available: https://www.energy.gov/eere/fuelcells/hydrogen-pr oduction-biomass-gasification. [47] M. M. Gamil et al., “Optimal sizing of a residential microgrid in Egypt under deterministic and stochastic conditions with PV/WG/Biomass Energy integration,” f, vol. 9, no. 3, pp. 483–515, 2021, doi: 10.3934/energy.2021024. [48] Singh S, Singh M, Kaushik SC. Feasibility study of an islanded microgrid in rural area consisting of PV, wind, biomass and battery energy storage system. Energ Conver Manage Nov. 2016;128:178–90. https://doi.org/10.1016/j. Enconman.2016.09.046. [49] Yang H, Zhou W, Lu L, Fang Z. Optimal sizing method for stand-alone hybrid solar–wind system with LPSP technology by using genetic algorithm. Sol Energy 2008;82(4):354–67. https://doi.org/10.1016/j.solener.2007.08.005. [50] Tito SR, Lie TT, Anderson TN. Optimal sizing of a wind-photovoltaic-battery hybrid renewable energy system considering socio-demographic factors. Sol Energy 2016; 136:525–32. https://doi.org/10.1016/j.solener.2016.07.036. [51] Hemmati R, Hooshmand R-A, Taheri N. Distribution network expansion planning and DG placement in the presence of uncertainties. Int J Electr Power Energy Syst 2015;73:665–73. https://doi.org/10.1016/j.ijepes.2015.05.024. [52] “Stochastic transmission expansion planning incorporating reliability solved using SFLA meta-heuristic optimization technique.” Accessed: Sep. 30, 2023. [Online]. Available: https://ieeexplore.ieee.org/document/7485812?arnumber=7485812. 86 Energy [53] Ozdemir G. Probabilistic CDF-based load forecasting model in a power distribution system. Sustainable Grids Networks 2024;38:101311. https://doi.org/ 10.1016/j.segan.2024.101311. [54] Moghaddam S, Bigdeli M, Moradlou M. Optimal design of an off-grid hybrid renewable energy system considering generation and load uncertainty: the case of Zanjan city, Iran. SN Appl Sci 2021;3(8):732. https://doi.org/10.1007/s42452 021-04718-x. [55] A. K. Bhatti et al., “Reliability evaluation of stand-alone hybrid microgrid using Sequential Monte Carlo Simulation,” Int. J. Electr. Power Energy Syst., 2014. (Accessible summary via ResearchGate). ResearchGate [56] O. K. Ajiboye et al., “A review of hybrid renewable energies optimisation,” Philosophical Magazine, vol. 103, no. 27, 2023—notes MCS for uncertainty in loads and RES. Taylor & Francis Online [57] “Monte Carlo Simulation in Renewable Energy Planning: A Comprehensive Review,” The American Journal of Engineering and Technology, Jun. 10, 2025. (Review of MCS across solar, wind, and HRES). The American Journals [58] C. A. Delgado et al., “Point estimate method for probabilistic load flow of an unbalanced power distribution system with dispersed generation,” Int. J. Electr. Power Energy Syst., vol. 63, pp. 189–197, 2014. ScienceDirect [59] S. Habibi et al., “Stochastic energy management of a microgrid incorporating two-point estimation method, mobile storage, and demand response,” Sci. Rep., 14:51166, 2024. Nature+1 [60] M. Z. Kreishan et al., “Scenario-Based Uncertainty Modeling for Power Management in Microgrids,” Energies, vol. 16, no. 10, 4257, 2023. MDPI [61] Y. Li et al., “Optimal probabilistic scenario-based operation and scheduling of prosumer microgrids considering uncertainties of renewable energy sources,” Energy Sci. Eng., 8:e788, 2020. [62] N. Behera, “Chapter 8 - Analysis of microarray gene expression data using information theory and stochastic algorithm,” in Handbook of Statistics, vol. 43, A. S. R. Srinivasa Rao and C. R. Rao, Eds., in Principles and Methods for Data Science, vol. 43. , Elsevier, 2020, pp. 349–378. doi: 10.1016/bs.host.2020.02.002. [63] “Study of Typical Meteorological Years and Their Effect on Building Energy and Renewable Energy Simulations- ProQuest.” Accessed: Oct. 03, 2023. [Online]. Available: https://www.proquest.com/openview/5c0f703120c5c2886a90a2d6 53e7e955/1?pq-origsite=gscholar&cbl=34619. [64] J. Kennedy and R. Eberhart, “Particle swarm optimization,” in Proceedings of IEEE International Conference on Neural Networks, Perth, Australia, 1995, pp. 1942–1948, doi: 10.1109/ICNN.1995.488968. [65] M. A. Abido, “Optimal power flow using particle swarm optimization,” International Journal of Electrical Power & Energy Systems, vol. 24, no. 7, pp. 563–571, Oct. 2002, doi: 10.1016/S0142-0615(01)00067-9. 87 [66] Y. Shi and R. Eberhart, “A modified particle swarm optimizer,” in Proceedings of the IEEE Congress on Evolutionary Computation (CEC), Anchorage, AK, USA, 1998, pp. 69–73, doi: 10.1109/ICEC.1998.699146. [67] D. E. Goldberg, Genetic Algorithms in Search, Optimization, and Machine Learning. Reading, MA, USA: Addison-Wesley, 1989. [68] S. S. Chandel, M. Nagaraju, and B. K. Chandel, “Review of hybrid renewable energy systems optimization techniques,” Renewable and Sustainable Energy Reviews, vol. 50, pp. 1188–1203, Oct. 2015, doi: 10.1016/j.rser.2015.05.040. [69] K. Deep and M. Thakur, “A new crossover operator for real coded genetic algorithms,” Applied Mathematics and Computation, vol. 188, no. 1, pp. 895–911, May 2007, doi: 10.1016/j.amc.2006.10.041. [70] S. Mirjalili, S. M. Mirjalili, and A. Lewis, “Grey Wolf Optimizer,” Advances in Engineering Software, vol. 69, pp. 46–61, Mar. 2014, doi: 10.1016/j.advengsoft.2013.12.007. [71] D. K. Geleta and M. S. Manshahia, “Grey wolf optimizer for optimal sizing of hybrid wind and solar renewable energy system,” Scientific Reports, vol. 15, no. 1, Art. no. 642, Mar. 2025, doi: 10.1038/s41598-025-06442-7. [72] H. Saremi, S. Mirjalili, and S. M. Mirjalili, “Chaotic grey wolf optimizer,” Applied Soft Computing, vol. 26, pp. 330–347, Jan. 2015, doi: 10.1016/j.asoc.2014.09.017. [73] S. Mirjalili and A. Lewis, “The Whale Optimization Algorithm,” Advances in Engineering Software, vol. 95, pp. 51–67, May 2016, doi: 10.1016/j.advengsoft.2016.01.008. [74] M. Dhivya and R. Rajkumar, “Optimal sizing of hybrid renewable energy systems using whale optimization algorithm,” Energy Reports, vol. 6, pp. 209–220, Nov. 2020, doi: 10.1016/j.egyr.2020.09.012. [75] A. Kaveh and A. Dadras, “A novel meta-heuristic optimization algorithm: Thermal exchange optimization,” Advances in Engineering Software, vol. 110, pp. 69–84, Nov. 2017, doi: 10.1016/j.advengsoft.2017.03.002. [76] A. M. Diab et al., “Probabilistic approaches for hybrid renewable energy systems – A comparative review,” Renewable Energy, vol. 195, pp. 1251–1268, 2022. [77] S. Verma and R. Kumar, “Hybrid meta-heuristic algorithms for renewable-energy optimization,” Energy Conversion and Management, vol. 274, 2023. [78] M. Al-Mutairi et al., “An adaptive hybrid PSO–GWO–WOA algorithm for multi-objective energy system design,” Applied Soft Computing, vol. 132, 2024.
