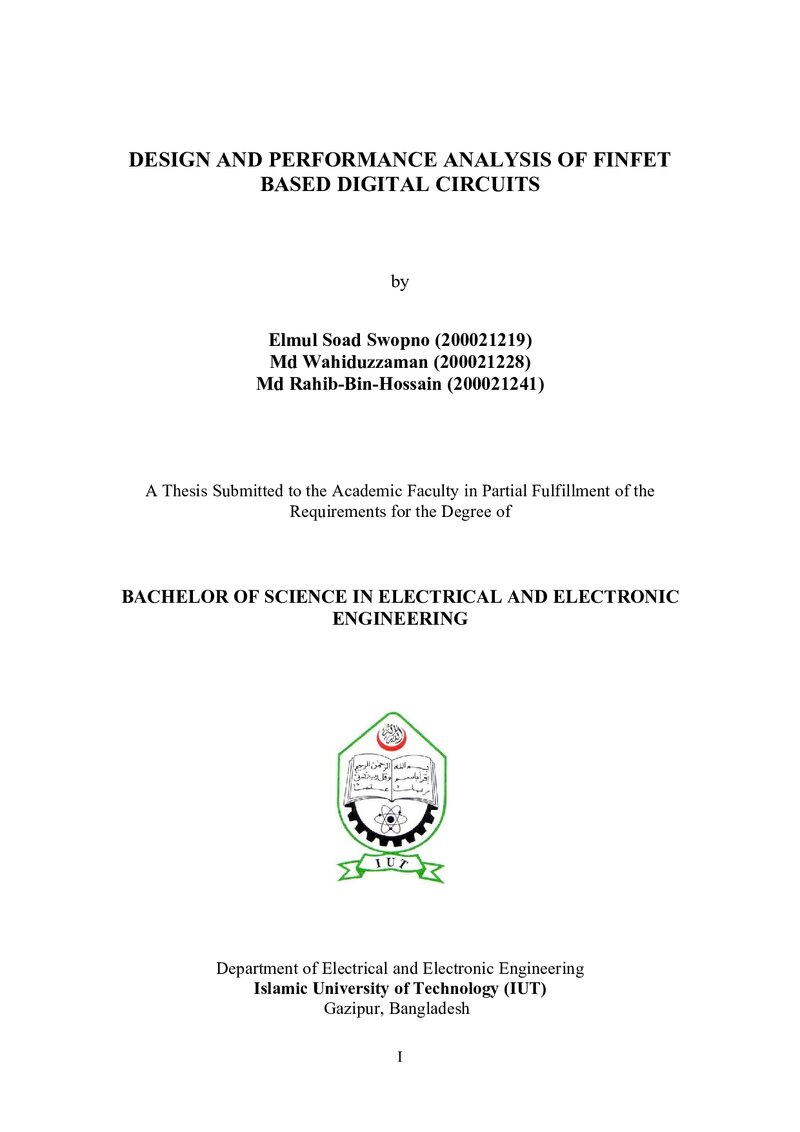

Design and Performance Analysis of FinFET-Based Digital Circuits
Date
2025-10-25
Journal Title
Journal ISSN
Volume Title
Publisher
Department of Electrical and Electronic Engineering (EEE), Islamic University of Technology(IUT), Board Bazar, Gazipur-1704, Bangladesh
Abstract
The continual downscaling of transistor dimensions in advanced semiconductor technologies
has accentuated the limitations of conventional planar CMOS devices, notably the
pronounced short-channel effects: threshold voltage roll-off and elevated leakage currents
observed at deep nanometer regimes. To address these constraints, this study presents a
comprehensive Design and Performance Analysis of FinFET-Based Digital Circuits,
focusing on Inverter, NAND and NOR gates implemented using predictive SPICE models.
FinFET technology, with its tri-gate structure and superior electrostatic control, is evaluated
alongside conventional CMOS and emerging CNFET architectures to assess improvements in
speed, leakage, and energy efficiency.
Device-level simulations were conducted in Silvaco TCAD to validate a 20 nm FinFET
structure, while circuit-level analyses employed Cadence Virtuoso using PTM 32 nm CMOS,
PTM 7 nm FinFET, and Stanford–MIT VS-CNFET models. Key performance metrics
propagation delay, static leakage power, average power, and power-delay product (PDP)
were extracted for cross-technology comparison: results showing FinFET circuits to achieve
over 95% reduction in static leakage and nearly 90% improvement in PDP relative to
CMOS, owing to enhanced gate control and reduced parasitics. CNFET circuits exhibit the
best theoretical performance with ultra-low leakage and minimal PDP, attributed to quasi
ballistic carrier transport.
To further optimize power consumption, two circuit-level leakage control schemes,
LECTOR and INDEP, were implemented. The LECTOR–FinFET configuration achieved
consistent leakage suppression with minimal delay penalty, whereas INDEP–FinFET offered
more aggressive leakage reduction- up to 92%- at the cost of higher propagation delay and
PDP.
Overall, FinFET integrated with LECTOR optimization demonstrates the most practical and
energy-efficient architecture for nanoscale digital circuit design, whereas CNFET remains a
promising candidate for future ultra-low-power VLSI systems pending fabrication maturity.
Description
Supervised by
Dr. Md. Masum Billah,
Assistant Professor,
Department of Electrical and Electronic Engineering (EEE)
Islamic University of Technology (IUT)
Board Bazar, Gazipur, Bangladesh
This thesis is submitted in partial fulfillment of the requirement for the degree of Bachelor of Science in Electrical and Electronic Engineering, 2025
Keywords
FinFET, CNFET, CMOS, Leakage Reduction, LECTOR, INDEP, Power Delay Product (PDP), Short Channel Effects(SCE), TCAD Simulation, SPICE Modeling, Low Power VLSI Design, Nanoscale Devices.
