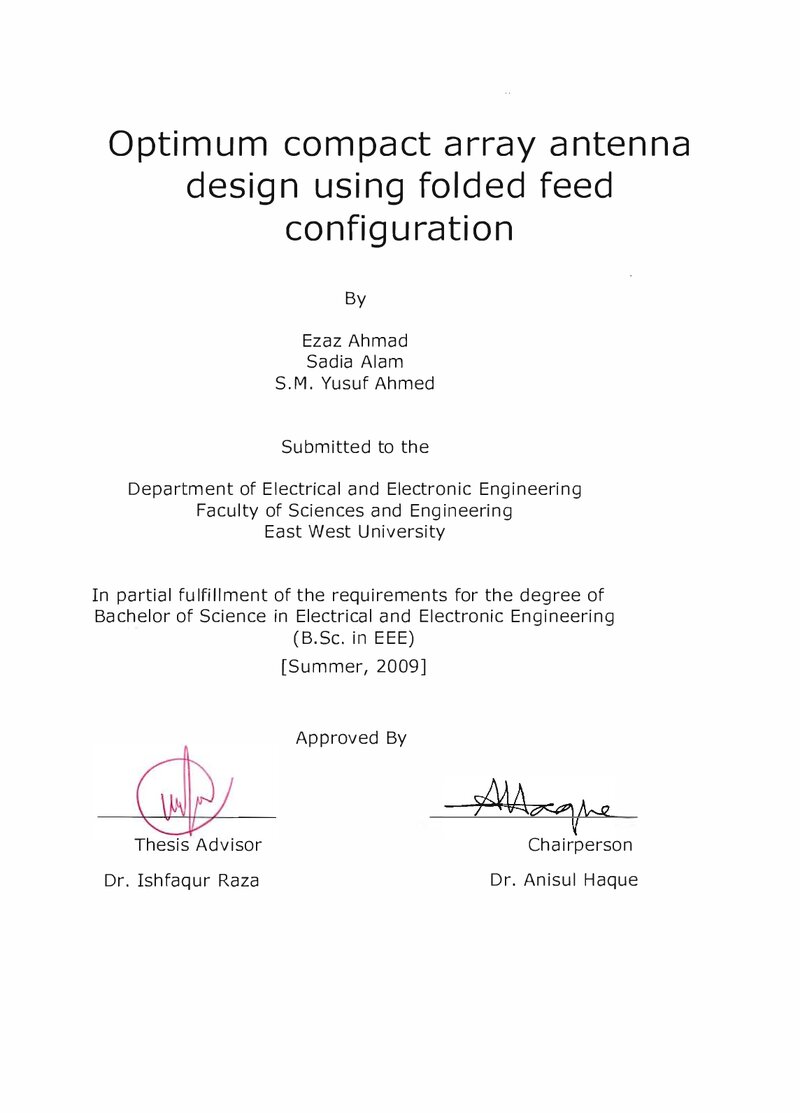

Optimum Compact Array Antenna Design Using Folded Feed Configuration

Abstract

micro strip array antenna helps to provide regionally goal and ease of management of antennas, so the array antem1a is widely used in real applications. Optimum array antenna needs to have minimum impedance mismatch. To remove the impedance mismatch the width of the feed line and transmission lines needs to be tuned across the network of feed lines However, l larger array tend to take up a lot of space due the network of feed lines in a large antenna array set up. Considering the reduction of impedance mismatch with different forms turns, we have designed an Patch Antenna and we that antenna the Array. We have considered various types of desing process by verifying those we have selected the best configuration for the feed line network.
