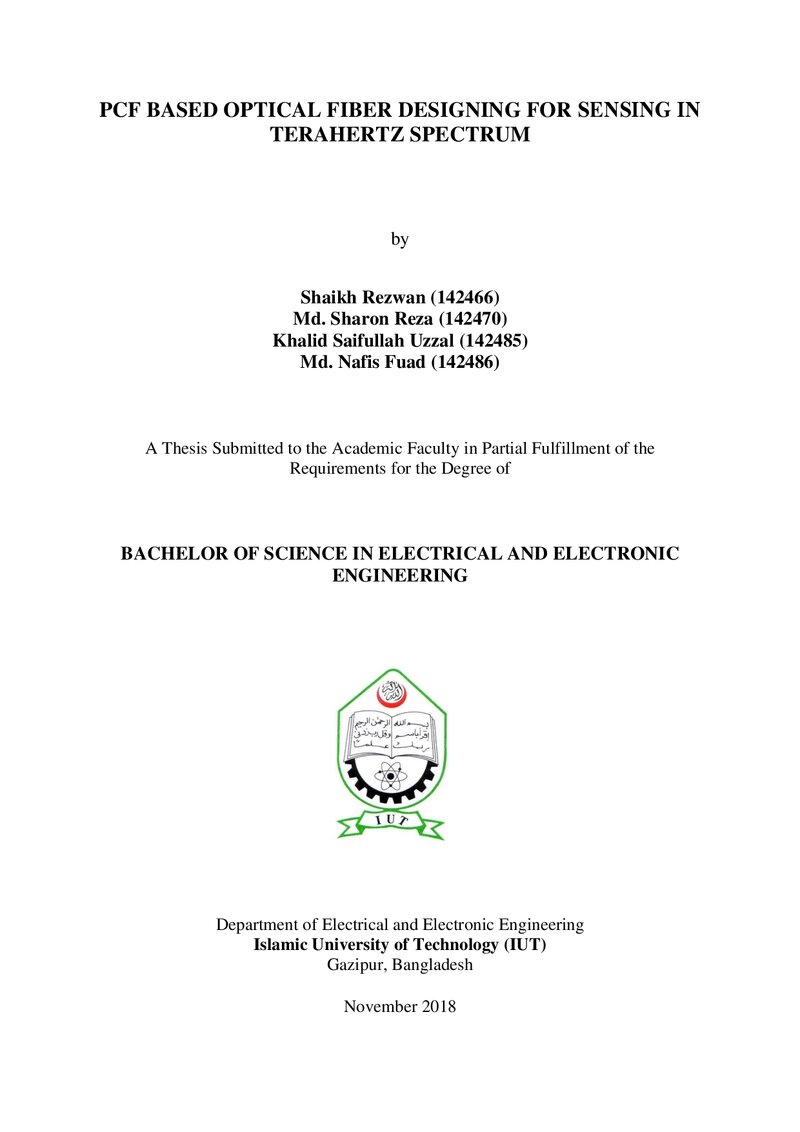

PCF Based Optical Fiber Designing for Sensing in Terahertz Spectrum
Date
2018-11-15
Journal Title
Journal ISSN
Volume Title
Publisher
Department of Electrical and Electronic Engineering, Islamic University of Technology, Board Bazar, Gazipur, Bangladesh
Abstract
Terahertz radiation occupies a middle ground between microwaves and infrared light waves known as the terahertz gap, where technology for its generation and manipulation is in its infancy. The frequency band of 0.1-10 THz, known as THz band has brought potential applications in many important fields. For wave propagation THz systems use free space as medium. But in free space waves face many difficulties which is very big issue for wave propagation. So, we have to use guided transmission instead of unguided transmission.
In the meantime, many guided transmission lines have many kinds of deprivation such as Effective Material Loss (EML), Confinement Loss, Bending Loss, Dispersion Loss, Power Fraction issue etc.
A highly sensitive porous core – photonic crystal fiber (PC-PCF) has been designed and analyzed for remote detection of chemical analytes in terahertz frequency range. The PC-PCF has been modelled using rectangular structured air holes in the core with square structured cladding. The full Vectorial finite Element Method (FEM) has been used to tune the geometrical parameters also to characterize the fiber.
At 1.8 THz, 37.3 µm slotted hole width and x-polarization mode the relative sensitivity for water, ethanol and benzene are 93.68%, 94.25%, and 94.43% respectively. The relative sensitivity obtained for the y polarization for water, ethanol and benzene are 94.4%, 94.92%, and 95.09% respectively. Effective Material Loss (EML) of water, ethanol benzene at frequency 1.8THz at x- polarization 0.06 cm-1, 0.055 cm-1, 0.054 cm-1 and at y-polarization 0.044 cm-1, 0.0411 cm-1, 0.054 cm-1 respectively. Effective area at optimum design parameters at x-polarization mode are 2.38E- 07m2, 2.25E-07m2 and 2.21E-07m2 at y-polarization mode are 2.38E-07m2, 2.25E-07m2 and 2.21E-07m2 for water, ethanol and benzene respectively.
Simulation results demonstrate a high relative chemical sensitivity for different analytes. Moreover, the PCF shows very low near zero Dispersion Variation, high Modal Effective Area, high Birefringence and high Numerical Aperture (NA). The practical implementation of the fiber is feasible with the present fabrication techniques. The optimized PCF with such attractive characteristic has commercial applications in remote chemical sensing as well as polarization preserving applications of terahertz waves.
Description
Supervised by Prof. Dr. Mohammad Rakibul Islam
Professor,
Department of Electrical and Electronic Engineering, Islamic University of Technology (IUT), Board Bazar, Gazipur-1704
Keywords
Citation
[1] K. Wang and D. M. Mittleman, ‘‘Metal wires for terahertz wave guiding,’’ nature 432, 376–379 (2004). [2] B. Bowden, J. A. Harrington, and O. Mitrofanov, ‘‘Silver/polystyrene-coated hollow glass waveguides for the transmission of terahertzradiation,’’opt. lett. 32(20), 2945– 2947 (2007). [3] C. Themistos et al., “Characterization of silver/polystyrene (PS) coated hollow glass waveguides at THz frequency,”J. Lightwave Technol.25(9), 2456–2462 (2007). [4] M. Skorobogatiy and A. Dupuis, “Ferroelectric all-polymer hollow Bragg fibers for terahertz guidance,” Appl. Phys. Lett., vol. 90, no. 11,pp. 113514-1–113514-3, Mar. 2007. [5] M. Skorobogatiy and A. Dupuis, “Ferroelectric all-polymer hollow Bragg fibers for terahertz guidance,” Appl. Phys. Lett., vol. 90, no. 11,pp. 113514-1–113514-3, Mar. 2007. [6] L. J. Chen et al., “Low-loss subwavelength plastic fiber for terahertz waveguiding,” opt. Lett. 31(3), 308–310 (2006). [7] L.J.Chen, H.W. Chen, T.F.Kao, J.Y. Lu,and C.K. Sun,“Low-loss subwavelength plastic fiber for terahertz waveguiding,” Opt. Lett., vol. 31, no. 3, pp. 308–310, Feb. 2006. [8] M. Nagel, A. Marchewka, and H. Kurz, “Low-index discontinuity terahertz waveguides,” Opt. Express, vol. 14, no. 21, pp. 9944–9954, 2006 [9] L.J. Chen, H.W. Chen, T.F. Kao, J.Y. Lu, C.K. Sun, “Low-loss subwavelength plasticfiber for terahertz waveguiding”, Opt. Lett. 31 (3) (2006) 308–310. [10] C.S. Ponseca Jr., R. Pobre, E. Estacio, N. Sarukura, A. Argyros, M.C. Large, M.A. van Eijkelenborg, “Transmission of terahertz radiation using a microstructuredpolymer optical fiber”, Opt. Lett. 33 (9) (2008) 902–904. [11] K. Nielsen, H.K. Rasmussen, A.J. Adam, P.C. Planken, O. Bang, P.U. Jepsen, [12] Bendable, “low-loss Topas fibers for the terahertz frequency range”, Opt. Exp. 17(10) (2009) 8592–8601. [13] M. Goto, A. Quema, H. Takahashi, S. Ono, N. Sarukura, “Teflon photonic crystal fiber as terahertz waveguide”, Jpn. J. Appl. Phys. 43 (2B) (2004) L317–L319. pt.2. [14] G. Zhao, M.T. Mors, T. Wenckebach, P.C.M. Planken, “Terahertz dielectricproperties of polystyrene foam”, J. Opt. Soc. Amer. B 19 (6) (2002) 1476–1479. [15] J.Y. Lu, C.P. Yu, H.C. Chang, H.W. Chen, Y.T. Li, C.L. Pan, C.K. Sun, “Terahertz air-core microstructure fiber”, Appl. Phys. Lett. 92 (6) (2008) 064105-1–064105-3 [16] M. Skorobogatiy, A. Dupuis, “Ferroelectric all polymer hollow Bragg fibers for terahertz guidance”, Appl. Phys. Lett. 90 (11) (2007) 113514-1–113514-3. [17] H. Han, H. Park, M. Cho, and J. Kim, “Terahertz pulse propagation in a plastic photonic crystal fiber,” Appl. Phys. Lett., vol. 80, no. 15, pp. 2634–2636, 2002. [18] P.J.St. Russell, “Photonic crystal fibers”, Science 299 (5605) (2003) 358–362. [19] H. Han, H. Park, M. Cho, J. Kim, “Terahertz pulse propagation in a plastic photonic crystal fiber”, Appl. Phys. Lett. 80 (15) (2002) 2634–2636. A. Hassani, A. Dupuis, M. Skorobogatiy, “Porous polymer fibers for low-loss terahertz guiding”, Opt. Express 16 (9) (2008) 6340–6351. B. Ung, A. Mazhorova, A. Dupuis, M. Roze, M. Skorobogatiy, “Polymer microstructured optical fibers for terahertz wave guiding”, Opt. Express 19(26) (2011) B848–B861. [20] K. Nielsen, H.K. Rasmussen, P.U. Jepsen, O. Bang, “Porous-core honeycomb bandgap THz fiber”, Opt. Lett. 36 (5) (2011) 666–668. [21] H. Bao, K. Nielsen, H.K. Rasmussen, P.U. Jepsen, “Fabrication and characterization of porous-core honeycomb bandgap THz fibers”, Opt. Express20 (28) (2012) 29507– 29517. [22] M. Uthman, B.M.A. Rahman, N. Kejalakshmy, A. Agarwal, K.T.V. Grattan, “Design and characterization of low-loss photonic crystal fiber”, IEEE photonics J. (6)(2012). [23] S. Atakaramians, S. A. Vahid, B. M. Fischer, D. Abbott, and T. M. Monro, “Porous fibers: A novel approach to low loss THz waveguides,” Opt. Exp., vol. 16, no. 12, pp. 8845–8854, Jun. 2008. [24] S. F. Kaijage, Z. Ouyang, and X. Jim, “Porous-core photonic crystal fiber for low loss terahertz wave guiding”,IEEE Photon. Technol. Lett.,vol. 25, no. 15, pp.1454–1457, Aug. 1, 2013. [25] M. Uthman, B.M.A. Rahman, N. Kejalakshmy, A. Agarwal, K.T.V. Grattan, “Design and characterization of low-loss photonic crystal fiber”, IEEE photonics J 4(6)(2012). [26] K. Nielsen, H. K. Rasmussen, P. U. Jepsen, and O. Bang, “Porous-core honeycomb [27] bandgap THz fiber,” Opt. Lett., vol. 36, no. 5, pp. 666–668, Mar. 2011. [28] M. Uthman, B.M.A. Rahman, N. Kejalakshmy, A. Agarwal, K.T.V. Grattan, Design and characterization of low-loss photonic crystal fiber, IEEE photonics J. 4 (6) (2012). [29] J. Liang, L. Ren, N. Chen, and C. Zhou, “Broadband, low-loss, dispersion flattened porous-core photonic bandgap fiber for terahertz (THz)- wave propagation,” Opt. Commun., vol. 295, pp. 257 261, May 2013. [30] S. F. Kaijage, Z. Ouyang, and X. Jim, “Porous-core photonic crystal fiber for low loss terahertz wave guiding,”IEEE Photon. Technol. Lett., vol. 25, no. 15, pp. 1454– 1457, Aug. 1, 2013. [31] RaonaqulIslam,G. K. M. Hasanuzzaman, Md. Selim Habib, SohelRana, M. A. G. Khan “Low-loss rotated porous core hexagonal single-mode fiber in THz regime”Elsevier Optical Fiber Technology 24 (2015) 38–43. [32] SohelRana, GolamKibria, Md. Hasanuzzaman, Samiul Habib, Shubi F. Kaijage, Raonaqul Islam “Proposal for a low loss porous core octagonal photonic crystal fiber for T-ray wave guiding” Optical Engineering 53(11), 115107 (November 2014). [33] Md. Imran Hasan, S. M. AbdurRazzak, G. K. M. Hasanuzzaman, Md. Samiul Habib “Ultra-Low Material Loss and Dispersion Flattened Fiber for THz Transmission” IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 26, NO. 23, DECEMBER 1, 2014 [34] Md.Saiful Islam , SohelRana, Mohammad Rakibul Islam, Mohammad Faisal, Hasan Rahman, Jakeya Sultana “Porous core photonic crystal fiber for ultra-low material loss in THz regime” IET Journals ( July,2016) [35] . Nielsen, H. K. Rasmussen, A. J. L. Adam, P. C. M. Planken, O. Bang, and P. U. Jepsen, “Bendable, low-loss Topas fibers for the terahertz frequency range,” Opt. Exp., vol. 17, no. 10, pp. 8592–8601, May 2009. [36] R. T. Bisen and D. J. Trevor, “Solgel-derived microstructured fibers: Fabrication and characterization,” in Proc. Opt. Fiber Commun.Conf. (OFC), Mar. 2005, p. OWL6. [37] Raonaqul Islam, G.K.M. Hasanuzzaman, Md. Selim Habib, Sohel Rana, “Low-loss rotated porous core hexagonal single-mode fiber in THz regime,”Optical Fiber Technology , 38-43, May 2015. [38] M. Walther, B. M. Fischer, A. Ortner, A. Bitzer, A. Thoman, and H. Helm, “Chemical sensing and imaging with pulsed terahertz radiation,” Analytical and Bioanalytical Chemistry, vol. 397, no. 3, pp. 1009– 1017, (2010). [39] B. M. Fischer, H. Helm and P. U. Jepsen,“Chemical recognition with broadband THz spectroscopy,” Proceedings of the IEEE, vol. 95, no. 8, pp. 1592–1604 (2007). [40] B. M. Fischer, M Hoffmann, H. Helm, G. Modjesch and P. Uhd Jepsen, “Chemical recognition in terahertz time-domain spectroscopy and imaging,” Semiconductor Science and Technology, vol. 20, no. 7, S246, (2005). [41] W. Withayachumnankul, G. M. Png, X. Yin, S. Atakaramians, I. Jones, H. Lin, B. S. Y. Ung, J. Balakrishnan, B. W.-H. Ng, B. Ferguson, S. P. Mickan, B. M. Fischer, and D. Abbott, “T-ray sensing and imaging,” Proceedings of the IEEE., vol. 95, no. 8, pp. 1528–1558, 2007. [42] J. Q. Zhang and D. Grischkowsky, “Waveguide terahertz time-domain spectroscopy of manometer water layers,” Opt. Lett., vol. 29, no. 14, pp. 1617-1619 (2004). [43] M. Nagel, P. H. Bolivar, M. Brucherseifer, H. Kurz, A. Bosserhoff and R. Bttner, “Integrated THz technology for label-free genetic diagnostics,” Appl. Phy. Lett., vol. 80, no. 154, pp. 154–156 (2002). [44] B. M. Fischer, M. Hoffmann, H. Helm, R. Wilk, F. Rutz, T. KleineOstmann, M. Koch, and P. Uhd Jepsen, “Terahertz time-domain spectroscopy and imaging of artificial RNA,” Opt. Express., vol. 13, no. 14, pp. 5205–5215 (2005). A. G. Markelz, A. Roitberg, E. J. Heilweil, “Pulsed terahertz spectroscopy of DNA, bovine serum albumin and collagen between 0.1 and 2.0 THz,” Chemical Physics Letters,, vol. 320, no. 1, pp. 42–48 (2000). A. G. Markelz, J. R. Knab, J. Y. Chen, and Y. He, “Protein dynamical transition in terahertz dielectric response,” Chemical Physics Letters,, vol. 442, no. 4, pp. 413–417 (2007). B. M. Fischer, M. Walther and P. Uhd Jepsen, “Far-infrared vibrational modes of DNA components studied by terahertz time-domain spectroscopy, ” Physics in Medicine Biology, vol. 47, no. 21, pp. 413– 417 (2002). C. Yu, S. Fan. Y. Sun, E. Pickwell-MacPherson, “The potential of terahertz imaging for cancer diagnosis: A review of investigations to date,” Quantitative Imaging in Medicine and Surgery, vol. 2, no. 1, pp. 33–45 (2012). [45] https://www.umass.edu/cphm/content/real-time-breast-cancer-celldetection-terahertz. [46] H. Cheon, H. J. Yang and J. H. Son, “Toward clinical cancer imaging using terahertz spectroscopy,” Journal of Selected Topics in Quantum Electronics, vol. 23, no. 4, pp. 1–9 (2017). [47] K. I. Zaytsev, K. G. Kudrin, S. A. Koroleva, I. N. Fokina, S. I. Volodarskaya, E. V. Novitskaya, A. N. Perov, V. E. Karasik and S. O. Yurchenko, “Medical diagnostics using terahertz pulsed spectroscopy, ” J. Phys. Conf. Ser, vol. 486, no. 1, 012014 (2014). [48] http://www.abc.net.au/news/2014-05-27/skin-cancer-laser-detection-toreduce-need- for-biopsies/5482004. A. M. R. Pinto and M. Lopez-Amo, “Photonic crystal fibers for sensing applications, ” Journal of Sensors, vol. 2012, 598178 (2012). [49] M. S. Islam, S. Rana, M. R. Islam, M. Faisal, H. Rahman, and J. Sultana, “Porous core photonic crystal fiber for ultra-low material loss in THz regime,” IET Communications, vol. 10, no. 16, pp. 2179–2183 (2016). [50] J. Sultana, Md. S. Islam, J. Atai, M. R. Islam and D. Abbott “Nearzero dispersion flattened, low-loss porous-core waveguide design for terahertz signal transmission,” Opt. Eng., vol. 56, no. 7, 076114 (2017). [51] Md. S. Islam, J. Sultana, J. Atai, M. R. Islam and D. Abbott,“Design and characterization of a low-loss, dispersion-flattened photonic crystal fiber for terahertz wave propagation,” Optik - International Journal for Light and Electron Optics., vol. 145, pp. 398–406 (2017). [52] S. Islam, M. R. Islam, M. Faisal, A. S. M. S. Arefin, H. Rahman, J. Sultana, and S. Rana, “Extremely low-loss, dispersion flattened porous-core photonic crystal fiber for terahertz regime,” Optical Engineering., vol. 55, no. 7, 076117 (2016). [53] M. S. Islam, J. Sultana, J. Atai, D. Abbott, S. Rana, and M. R. Islam, “Ultra low loss hybrid core porous fiber for broadband applications,”˜ Applied Optics., vol. 56, no. 4, pp. 1232–1237 (2017). [54] M. S. Islam, J. Sultana, S. Rana, M. R. Islam, M. Faisal, S. F. Kaijage, and D. Abbott “Extremely low material loss and dispersion flattened TOPAS based circular porous fiber for long distance terahertz wave transmission,” Optical Fiber Technol., vol. 24, pp. 6–11 (2016). A. M. Cubillas, S. Unterkofler, T. G. Euser, B. J. M. Etzold, A. C. Jones, P. J. Sadler, P. Wasserscheid, P. St. J. Russell, “Photonic crystal fibres for chemical sensing and photochemistry,” Chem. Soc. Rev. , vol. 42, pp. 8629–8648 (2013). B. M. B. Cordeiro, M. A. R. Franco, G. Chesini, E. C. S. Barretto, R. Lwin, C. H. B. Cruz, and M. C. J. Large “Microstructured-core optical fibre for evanescent sensing applications,” Opt. Express, vol. 14, no. 26, pp. 13056–13066 (2006). [55] Y. L. Hoo, W. Jin, H. L. Ho, D. N. Wang, R. S. Windeler, “Evanescentwave gas sensing using microstructure fiber” Optical Eng, vol. 41, no. 1, pp. 8–9 (2002). [56] T. Kiwa, J. Kondo, S. Oka, I. Kawayama, H. Yamada, M. Tonouchi, and K. Tsukada, “Chemical sensing plate with a laser-terahertz monitoring system,” Appl. Opt., vol. 47, no. 18, pp. 3324–3327 (2008). [57] T. M. Monro, W. Belardi, K. Furusawa, J. C. Baggett, N. G. R. Broderick and D. J. Richardson, “Sensing with microstructured optical fibres,” Measurement Science and Technology., vol. 12, no. 7, 854 (2001). [58] Y. Yu, X. Li, X. Hong, Y. Deng, K. Song, Y. Geng, H. Wei, W. Tong, “Some features of the photonic crystal fiber temperature sensor with liquid ethanol filling,” Opt. Express, vol. 18, no. 15, pp. 15383–15388 (2010). [59] K. Lee, S. A. Asher, “Photonic crystal chemical sensors: pH and ionic strength,” J. Am. Chem. Soc., vol. 122, no. 39, pp. 9534–9537 (2000). [60] H. Ademgil “Highly sensitive octagonal photonic crystal fiber based sensor” Optik - International Journal for Light and Electron Optics., vol. 125, no. 20, pp. 6274–6278 (2014). [61] H. Ademgil, and S. Haxha “Highly PCF based sensor with high sensitivity, high birefringence and low confinement losses for liquid analyte sensing applications,” Sensors, vol. 15, no. 12, pp. 31833–31842 (2015). [62] Md. F. H. Arif, K. Ahmed, S. Asaduzzaman, Md. A. K. Azad, “Design and optimization of photonic crystal fiber for liquid sensing applications,” Photonic Sensors, vol. 6, no. 3, pp. 279–288 (2016). [63] B. K. Paul, Md. S. Islam, K. Ahmed, S. Asaduzzaman, “Alcohol sensing over O+E+S+C+L+U transmission band based on porous cored octagonal photonic crystal fiber,” Photonic Sensors, vol. 7, no. 2, pp. 123–130 (2017). [64] S. Asaduzzaman, and K. Ahmed. “Microarray-Core Based Circular Photonic Crystal Fiber for High Chemical Sensing Capacity with Low Confinement Loss,” Optica Applicata, vol. 47, no. 1, pp. 41–49 (2017). [65] B. K. Paul, K. Ahmed, S. Asaduzzaman, Md. S. Islam, “Folded cladding porous shaped photonic crystal fiber with high sensitivity in optical sensing applications: design and analysis,” Sensing and BioSensing Research,, vol. 12, pp. 36–42 (2017). [66] M. Sharma, N. Borogohain, S. Konar, “Index guiding photonic crystal fibers with large birefringence and walk-off,” J. Lightwave Technol., vol. 31, no. 21, pp. 3339–3344 (2013). [67] S. E Kim, B. H. Kim, C. G. Lee, S. Lee, K. Oh, C. S. Kee, “Elliptical defected core photoniccrystal fiber with high birefringence and negative flattened dispersion, ” Opt. Express., vol. 20, no. 2, pp. 1385–1391 (2012). [68] Y. Y. Wang, N. V. Wheeler, F. Couny, P. J. Roberts, and F. Benabi, “Low loss broadband transmission in hypocycloid-core Kagome hollow-core photonic crystal fiber, ” Opt. Lett., vol. 36, no. 5, pp. 669–671 (2011). A. Hossain and Y. Namihira, “Light source design using Kagome lattice hollow core photonic crystal fibers, ” Opt. Rev., vol. 21, no. 5, pp. 490– 495 (2014). [69] http://www.topas.com/tech-center/performance-data/optics. [70] T. M. Monro, W. Belardi, K. J. Furusawa, C. N. Baggett, G. R. Broderick, D. J. Richardson, “Sensing with microstructured optical fibres” Meas. Sci. Technol., vol. 12, pp. 854–858 (2011). [71] B. T. Kuhlmey, B. J. Eggleton, and D. K. C. Wu, “Fluid-filled solidcore photonic bandgap fibers,” J. Lightwave Technol., vol. 27, no. 11, pp. 1617–1630 (2008). [72] M. Vieweg, T. Gissibl, S. Pricking, B. T. Kuhlmey, D. C.Wu, B. J. Eggleton, H. Giessen, “Ultrafast nonlinear optofluidics in selectively liquid-filled photonic crystal fibers,” Opt. Express, vol. 18, no. 24, pp. 25232–25240 (2010). [73] https://www.aao.org/eye-health/treatments/what-is-opticalcoherence-tomography. [74] S. Chowdhury, S. Sen, K. Ahmed, S. Asaduzzaman, “Design of highly sensible porous shaped photonic crystal fiber with strong confinement field for optical sensing,” Optik - International Journal for Light and Electron Optics, vol. 142, pp. 541–549 (2017). [75] W. J. Wadsworth and R. M. Percival and G. Bouwmans and J. C. Knight and T. A. Birks and T. D. Hedley and P. S. J. Russell, “Very high numerical aperture fibers,” IEEE Photonics Technol. Lett., vol. 16, no. 3, pp. 843–845 (2004). [76] S. Rana, A. S. Rakin, H. Subbaraman, R. Leonhardt and D. Abbott, “Low Loss and Low Dispersion Fiber for Transmission Applications in the Terahertz Regime,” IEEE Photonics Technol. Lett., vol. 29, no. 10, pp. 830–833 (2017). [77] S. Atakaramians, S. Afshar, H. Ebendorff-Heidepriem, M. Nagel, B. M. Fischer, D. Abbott, and T. M. Monro, “THz porous fibers: design, fabrication and experimental characterization,” Opt. Express, vol. 17, no. 16, pp. 14053–14062 (2009). [78] Fabrications of Photonic Crystal Fibers, Photonic Crystal Fibre Science, accessed on 12th September, 2017 [Online]. Available: http://www.mpl.mpg.de/en/russell/research/topics/fabrication.html. A. M. Cubillas, S. Unterkofler, T.G. Euser, B. J. M. Etzold, A. C. Jones, P. J. Sadler, P. Wasserscheid, P. St. J. Russell, “Photonic crystal fibres for chemical sensing and photochemistry,” Chem. Soc. Rev., vol. 42, no.22, pp. 8629–8648 (2013).
