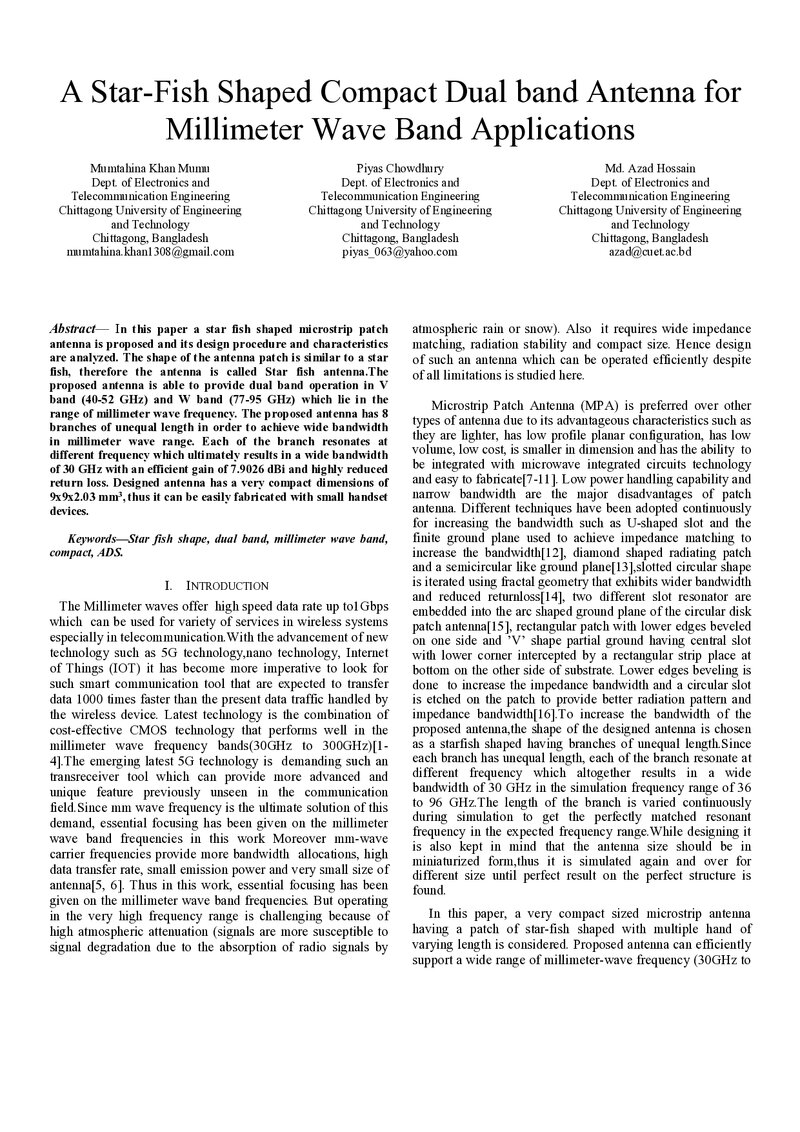

A Star-Fish Shaped Compact Dual band Antenna for Millimeter Wave Band Applications
Date
7-Feb-2019
Journal Title
Journal ISSN
Volume Title
Publisher
Faculty of Electrical and Computer Engineering, CUET
Abstract
In this paper a star fish shaped microstrip patch
antenna is proposed and its design procedure and characteristics
are analyzed. The shape of the antenna patch is similar to a star
fish, therefore the antenna is called Star fish antenna.The
proposed antenna is able to provide dual band operation in V
band (40-52 GHz) and W band (77-95 GHz) which lie in the
range of millimeter wave frequency. The proposed antenna has 8
branches of unequal length in order to achieve wide bandwidth
in millimeter wave range. Each of the branch resonates at
different frequency which ultimately results in a wide bandwidth
of 30 GHz with an efficient gain of 7.9026 dBi and highly reduced
return loss. Designed antenna has a very compact dimensions of
9x9x2.03 mm3, thus it can be easily fabricated with small handset
devices.
antenna is proposed and its design procedure and characteristics
are analyzed. The shape of the antenna patch is similar to a star
fish, therefore the antenna is called Star fish antenna.The
proposed antenna is able to provide dual band operation in V
band (40-52 GHz) and W band (77-95 GHz) which lie in the
range of millimeter wave frequency. The proposed antenna has 8
branches of unequal length in order to achieve wide bandwidth
in millimeter wave range. Each of the branch resonates at
different frequency which ultimately results in a wide bandwidth
of 30 GHz with an efficient gain of 7.9026 dBi and highly reduced
return loss. Designed antenna has a very compact dimensions of
9x9x2.03 mm3, thus it can be easily fabricated with small handset
devices.
Description
Keywords
Star fish shape, millimeter wave band, dual band, compact, ADS
