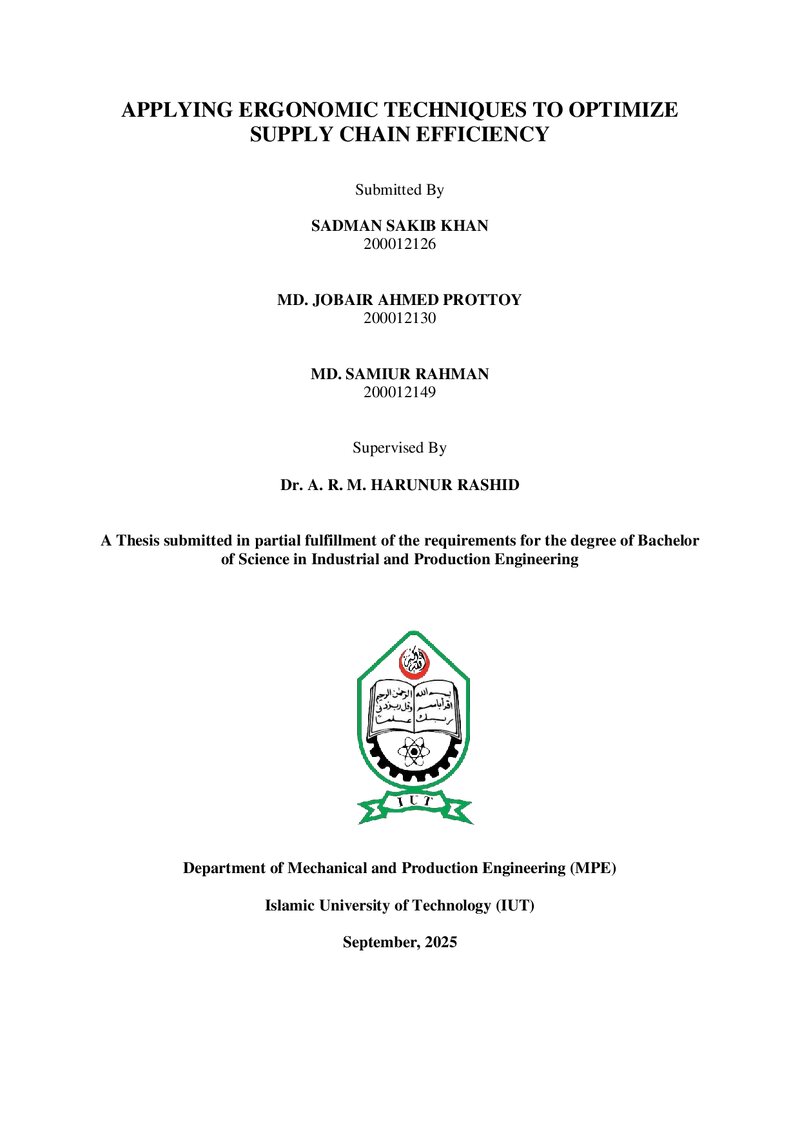

Applying Ergonomic Techniques to Optimize Supply Chain Efficiency
Date
2025-10-25
Journal Title
Journal ISSN
Volume Title
Publisher
Department of Mechanical and Production Engineering(MPE), Islamic University of Technology(IUT), Board Bazar, Gazipur-1704, Bangladesh
Abstract
Manual material handling in industries often forces workers into awkward and repetitive
postures, leading to musculoskeletal disorders (MSDs), fatigue, and productivity losses. These
ergonomic risks directly impact supply chain performance by increasing cycle times, reducing
throughput, and raising absenteeism. This thesis addresses these challenges by integrating
ergonomic monitoring with supply chain optimization. A wearable ergonomic posture
monitoring device was created to gather real-time joint angle information from the trunk, upper
arm, lower arm, wrist, and neck. The device has inertial measurement sensors, a
microcontroller, data logging, and a buzzer feedback system that warns workers when they are
in dangerous positions. Validation against Kinovea motion analysis software demonstrated an
average accuracy of approximately 97.4%, with a mean absolute error of 1.76°, thereby
affirming its reliability for industrial use. The device, which used RULA as the assessment
framework, showed that industrial tasks at baseline had high risk scores (average RULA 6–7),
but that post-intervention with real-time feedback lowered the scores to medium risk levels
(RULA 3–4). A lever-assisted CAD device was created in addition to monitoring to reduce the
strain associated with handling heavy loads during conveyor-to-pallet transfers. To lessen
lifting effort and trunk flexion, the CAD model incorporates a pivot lever mechanism and roller
tray. According to time-motion analysis supported by the literature, this device could reduce
the average cycle time per box transfer by approximately 35%, from 17.0 seconds to 11.1
seconds. Throughput is therefore anticipated to increase by approximately 17.2%, from 180.34
boxes per hour to 211.38 boxes per hour. The redesigned posture with the lever-assisted device
lowers the RULA score from 7 to 3, confirming both safety and efficiency gains, according to
additional validation from the CATIA V5 simulation. This study shows that ergonomics-based
interventions have quantifiable supply chain benefits in addition to safeguarding worker
health. Ergonomics becomes a strategic enabler of industrial efficiency and sustainability by
decreasing posture risks, reducing cycle times, and increasing throughput. The results offer a
reproducible framework for incorporating human-centered design into manufacturing and
warehouse processes, balancing supply chain optimization with worker well-being.
Description
Supervised by
Prof. Dr. A. R. M. Harunur Rashid,
Department of Mechanical and Production Engineering(MPE),
Islamic University of Technology (IUT)
Board Bazar, Gazipur-1704, Bangladesh
This thesis is submitted in partial fulfillment of the requirements for the degree of Bachelor of Mechanical and Production Engineering, 2025
Keywords
Citation
[1] [2] [3] [4] [5] [6] [7] [8] [9] A. N. B. Ismail, M. Widia, E. H. B. Sukadarin, W. N. B. M. Nawi, and M. F. Z. Bin Abidin, “Ergonomic Risk Assessment of Warehouse Workers in the Courier Service Industry: A Case Study from Kuantan, Malaysia,” Jurnal Optimasi Sistem Industri, vol. 23, no. 1, pp. 61–75, Jul. 2024, doi: 10.25077/josi.v23.n1.p61-75.2024. N. Jaffar, A. H. Abdul-Tharim, I. F. Mohd-Kamar, and N. S. Lop, “A literature review of ergonomics risk factors in construction industry,” in Procedia Engineering, 2011, pp. 89 97. doi: 10.1016/j.proeng.2011.11.142. A. Maniam, M. Nasrull, and A. Rahman, “Comparison An Ergonomic Risk Assessment For Repetitive Work Activities On Automotive Workshop Industries Around Parit Raja,” Research Progress in Mechanical and Manufacturing Engineering, vol. 4, no. 1, pp. 115 125, 2023, doi: 10.30880/rpmme.2023.04.01.012. N. S. Abarghouei and H. H. Nasab, “An Ergonomic Evaluation and Intervention Model: Macro ergonomic approach,” Int J Sci Eng Res, vol. 3, no. 2, 2012, [Online]. Available: http://www.ijser.org K. Foit, G. Gołda, and A. Kampa, “Integration and evaluation of intra-logistics processes in flexible production systems based on oee metrics, with the use of computer modelling and simulation of agvs,” Processes, vol. 8, no. 12, pp. 1–15, Dec. 2020, doi: 10.3390/pr8121648. Y. S. Zhao, M. H. Jaafar, A. S. Azlan Mohamed, N. Z. Azraai, and N. Amil, “Ergonomics Risk Assessment for Manual Material Handling of Warehouse Activities Involving High Shelf and Low Shelf Binning Processes: Application of Marker-Based Motion Capture,” Sustainability (Switzerland), vol. 14, no. 10, May 2022, doi: 10.3390/su14105767. D. D. Rio Vilas, D. del Rio Vilas, F. Longo, and N. Rego Monteil, “). A general framework for the manufacturing workstation design optimization: A combined ergonomic and operational approach A general framework for the manufacturing workstation design optimization: A combined ergonomic and operational approach,” 2013. W. Kim, J. Sung, D. Saakes, C. Huang, and S. Xiong, “Ergonomic postural assessment using a new open-source human pose estimation technology (OpenPose),” Int J Ind Ergon, vol. 84, Jul. 2021, doi: 10.1016/j.ergon.2021.103164. T. Thu and H. Tran, “Title Number of Pages Date.” [10] A. Gunasekaran, C. Patel, and R. E. McGaughey, “A framework for supply chain performance measurement,” in International Journal of Production Economics, Feb. 2004, pp. 333–347. doi: 10.1016/j.ijpe.2003.08.003. [11] M. A. Pattison, B. Eng, H. ) Miee, and W. School, “Operator-centric Assembl Station Desi n,” 2006. [12] D. D. Rio Vilas, D. del Rio Vilas, F. Longo, and N. Rego Monteil, “). A general framework for the manufacturing workstation design optimization: A combined ergonomic and operational approach A general framework for the manufacturing workstation design optimization: A combined ergonomic and operational approach,” 2013. [13] L. Ezquerro, R. Coimbra, B. Bauluz, C. Núñez-Lahuerta, T. Román-Berdiel, and M. Moreno-Azanza, “Large dinosaur egg accumulations and their significance for understanding nesting behaviour,” Geoscience Frontiers, vol. 15, no. 5, Sep. 2024, doi: 10.1016/j.gsf.2024.101872. [14] R. Bhagwat and M. K. Sharma, “Performance measurement of supply chain management: A balanced scorecard approach,” Comput Ind Eng, vol. 53, no. 1, pp. 43–62, Aug. 2007, doi: 10.1016/j.cie.2007.04.001. 55 [15] R. Z. Radin Umar, N. Ahmad, I. Halim, P. Y. Lee, and M. Hamid, “Design and Development of an Ergonomic Trolley-Lifter for Sheet Metal Handling Task: A Preliminary Study,” Saf Health Work, vol. 10, no. 3, pp. 327–335, Sep. 2019, doi: 10.1016/j.shaw.2019.06.006. [16] A. Saptari, P. K. Ng, M. Junardi, and A. Taslim, “A Feasibility Study on the Conversion from Manual to Semi-Automatic Material Handling in an Oil and Gas Service Company,” Safety, vol. 9, no. 1, Mar. 2023, doi: 10.3390/safety9010016. [17] S. W. J. Choong et al., “A preliminary study on ergonomic contribution to the engineering design approach of a wheel loader control lever system,” Sustainability (Switzerland), vol. 14, no. 1, Jan. 2022, doi: 10.3390/su14010122. [18] M. Attebrant, ’ J Winkel,’", S. E. Mathiassen’-, and A. Kjellberg’, “P1I:S0003 6870(%)00050-6 Shoulder-arm muscle load and performance during control operation in forestry machines Effects of changing to a new arm rest, lever and boom control system,” 1997. [19] S. Kafeety, D. Pannu, and O. Abbasi, “DESIGN AND MANUFACTURE OF AN INDOOR PADDLEBOARD TRAINER.” [20] H. Carvalho, S. G. Azevedo, and V. Cruz-Machado, “Agile and resilient approaches to supply chain management: Influence on performance and competitiveness,” Logistics Research, vol. 4, no. 1–2, pp. 49–62, Mar. 2012, doi: 10.1007/s12159-012-0064-2. [21] R. Kumar et al., “Ergonomic evaluation of workstation design using taguchi experimental approach: a case of an automotive industry,” International Journal on Interactive Design and Manufacturing, vol. 15, no. 4, pp. 481–498, Dec. 2021, doi: 10.1007/s12008-021 00776-y. [22] L. Hanson, O. Ljung, D. Högberg, J. Vollebregt, J. L. Jiménez Sánchez, and P. Johansson, “Enabling Manual Workplace Optimization Based on Cycle Time and Musculoskeletal Risk Parameters,” Processes, vol. 12, no. 12, Dec. 2024, doi: 10.3390/pr12122871.
